Setting up an e-mail alert for DBCC CHECKDB errors


Some months ago I posted a script on a SQLServerCentral forum to help a member automating the execution of DBCC CHECKDB and send and e-mail alert in case a consistency error is found.

The original thread can be found here.

I noticed that many people are actually using that script and I also got some useful feedback on the code itself, so I decided to write this post to make an enhanced version available to everyone.

The Problem

Your primary responsibility as a DBA is to safeguard your data with backups. I mean intact backups! Keep in mind that when you back up a corrupt database, you will also restore a corrupt database.

A task that checks the database integrity should be part of your backup strategy and you should be notified immediately when corruption is found.

Unfortunately, the built-in consistency check Maintenance Task does not provide an alerting feature and you have to code it yourself.

The Solution

SQL Server 2000 and above accept the “WITH TABLERESULTS” option for most DBCC commands to output the messages as a result set. Those results can be saved to a table and processed to identify messages generated by corrupt data and raise an alert.

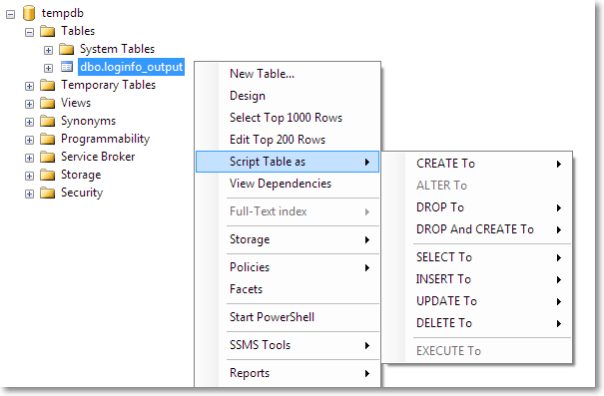

If you don’t know how to discover the resultset definition of DBCC CHECKDB WITH TABLERESULTS, I suggest that you take a look at this post.

Here is the complete code of the stored procedure I am using on my production databases:

-- https://spaghettidba.com/2011/11/28/email-alert-dbcc-checkdb/
-- You have a TOOLS database, don't you?
-- If not, create it: you'll thank me later.
USE TOOLS;
GO
IF NOT EXISTS( SELECT 1 FROM sys.schemas WHERE name = 'maint')
EXEC('CREATE SCHEMA maint');
GO
-- =============================================
-- Author: Gianluca Sartori - spaghettidba
-- Create date: 2011-06-30
-- Description: Runs DBCC CHECKDB on the database(s) specified
-- and returns a table result that can be used in
-- reporting and alerting.
-- =============================================
CREATE PROCEDURE [maint].[dba_runCHECKDB]
@dbName nvarchar(max) = NULL, -- Database name. If NULL, will check all databases
@PHYSICAL_ONLY bit = 0, -- Set to 1 to perform physical check only. Defaults to 0.
@allMessages bit = 0, -- Set to 1 to return all the messages generated by DBCC
-- Set to 0 to return one summary message for each database (default)
@dbmail_profile sysname = NULL, -- DBMail profile to use when sending the results
@dbmail_recipient sysname = NULL, -- DBMail recipient
@log_to_table bit = 0, -- Set to 1 to enable logging to table DBCC_CHECKDB_HISTORY
@help bit = 0
AS
BEGIN
SET NOCOUNT,
XACT_ABORT,
QUOTED_IDENTIFIER,
ANSI_NULLS,
ANSI_PADDING,
ANSI_WARNINGS,
ARITHABORT,
CONCAT_NULL_YIELDS_NULL ON;
SET NUMERIC_ROUNDABORT OFF;
IF @help = 1
BEGIN
SELECT *
FROM (
SELECT '@dbname nvarchar(max) = NULL','Database name.'
UNION ALL SELECT '','''Database'' checks a single database'
UNION ALL SELECT '','NULL checks all databases'
UNION ALL SELECT '','''Database1,Database2,...DatabaseN'' checks the databases in the list'
UNION ALL SELECT '','''^Database1,^Database2,...^DatabaseN'' checks all databases except the ones in the list'
UNION ALL SELECT '','Combinations of positive (not prefixed with ^) and negative (prefixed with ^) elements'
UNION ALL SELECT '','considers positive elements only. Use negative elements alone.'
UNION ALL SELECT '',''
UNION ALL SELECT '@PHYSICAL_ONLY bit = 0','If set to 1, performs CHECKDB WITH PHYSICAL_ONLY'
UNION ALL SELECT '',''
UNION ALL SELECT '@allMessages bit = 0','If set to 1, returns all the messages generated by DBCC'
UNION ALL SELECT '','If set to 0, returns a summary message for each database'
UNION ALL SELECT '',''
UNION ALL SELECT '@dbmail_profile sysname = NULL','The dbmail profile to use to send out the email.'
UNION ALL SELECT '','NULL uses the global dbmail profile'
UNION ALL SELECT '',''
UNION ALL SELECT '@dbmail_recipient sysname = NULL','The address that will receive the email.'
UNION ALL SELECT '','If set to NULL disables sending the email and returns a result set.'
UNION ALL SELECT '','If not NULL sends the email without returning a result set'
UNION ALL SELECT '',''
UNION ALL SELECT '@log_to_table bit = 0','If set to 1, stores the results in the table DBCC_CHECKDB_HISTORY.'
UNION ALL SELECT '','If the table does not exists, it will create the table for you.'
UNION ALL SELECT '','When logging to a table, a result set is not returned.'
UNION ALL SELECT '',''
UNION ALL SELECT '@help bit = 0','If set to 1 displays this help.'
) AS h (
[-----parameter------------------------------------------------------]
,[-----description----------------------------------------------------------------------------------------------------------------]
)
RETURN
END
DECLARE @version int
DECLARE @sql nvarchar(4000)
DECLARE @ErrorMessage nvarchar(2048)
DECLARE @body nvarchar(max)
DECLARE @Message nvarchar(4000)
DECLARE @Severity int
DECLARE @State int
-- determine major version: DBCC output can be different
SELECT @version = CAST(REPLACE(CAST(SERVERPROPERTY('ProductVersion') AS char(2)),'.','') AS int)
-- Clean up the @dbname parameter
-- Remove leading/trailing spaces
SET @dbname = LTRIM(RTRIM(@dbname))
-- Remove leading commas
WHILE LEFT(@dbname,1) = ','
SET @dbname = SUBSTRING(@dbname, 2, LEN(@dbname))
-- Remove trailing commas
WHILE RIGHT(@dbname,1) = ','
SET @dbname = SUBSTRING(@dbname, 1, LEN(@dbname)-1)
IF OBJECT_ID('tempdb..##DBCC_OUTPUT') IS NOT NULL
DROP TABLE ##DBCC_OUTPUT
-- SQL2005, SQL2008, SQL2008R2 produce this output
-- except for the columns explicitly marked as new in SQL 2012
CREATE TABLE ##DBCC_OUTPUT(
Error int NULL,
[Level] int NULL,
State int NULL,
MessageText nvarchar(2048) NULL,
RepairLevel nvarchar(22) NULL,
Status int NULL,
DbId int NULL, -- was smallint in SQL2005
DbFragId int NULL, -- new in SQL2012
ObjectId int NULL,
IndexId int NULL,
PartitionId bigint NULL,
AllocUnitId bigint NULL,
RidDbId smallint NULL, -- new in SQL2012
RidPruId smallint NULL, -- new in SQL2012
[File] smallint NULL,
Page int NULL,
Slot int NULL,
RefDbId smallint NULL, -- new in SQL2012
RefPruId smallint NULL, -- new in SQL2012
RefFile smallint NULL,
RefPage int NULL,
RefSlot int NULL,
Allocation smallint NULL
)
-- Add a computed column
ALTER TABLE ##DBCC_OUTPUT ADD Outcome AS
CASE
WHEN Error = 8989 AND MessageText LIKE '%0 allocation errors and 0 consistency errors%' THEN 0
WHEN Error <> 8989 THEN NULL
ELSE 1
END
-- Add an identity column to sort results when sending the email
ALTER TABLE ##DBCC_OUTPUT ADD RowId int IDENTITY(1,1)
DECLARE @localTran bit
IF @@TRANCOUNT = 0
BEGIN
SET @localTran = 1
BEGIN TRANSACTION LocalTran
END
BEGIN TRY
-- Create the history table if needed
IF @log_to_table = 1
AND OBJECT_ID('maint.DBCC_CHECKDB_HISTORY') IS NULL
BEGIN
SELECT TOP(0)
RowId,
Error,
[Level],
State,
MessageText,
RepairLevel,
Status,
DbId,
DbFragId,
CAST(NULL AS sysname) AS DatabaseName,
ObjectId,
IndexId,
PartitionId,
AllocUnitId,
RidDbId,
RidPruId,
[File],
Page,
Slot,
RefDbId,
RefPruId,
RefFile,
RefPage,
RefSlot,
Allocation,
Outcome,
GETDATE() AS RunDate
INTO maint.DBCC_CHECKDB_HISTORY
FROM ##DBCC_OUTPUT
ALTER TABLE maint.DBCC_CHECKDB_HISTORY
ADD CONSTRAINT PK_DBCC_CHECKDB_HISTORY PRIMARY KEY CLUSTERED(RowId)
END
-- Open a cursor on the matching databases (version dependant)
DECLARE c_databases CURSOR LOCAL FAST_FORWARD
FOR
SELECT QUOTENAME(name) AS name
FROM master.sys.databases
WHERE (
@dbname IS NULL
OR ',' + @dbname + ',' NOT LIKE '%,[^!^]%' ESCAPE '!'
OR ',' + @dbname + ',' LIKE '%,' + name + ',%'
OR ',' + @dbname + ',' LIKE '%,' + REPLACE(QUOTENAME(name),'[','[[]') + ',%'
)
AND ',' + ISNULL(@dbname,'') + ',' NOT LIKE '%,!^' + name + ',%' ESCAPE '!'
AND ',' + ISNULL(@dbname,'') + ',' NOT LIKE '%,!^' + REPLACE(QUOTENAME(name),'[','[[]') + ',%' ESCAPE '!'
AND state_desc = 'ONLINE'
AND is_read_only = 0
AND source_database_id IS NULL -- Exclude Snapshots
AND name <> 'tempdb'
OPEN c_databases
FETCH NEXT FROM c_databases INTO @dbName
WHILE @@FETCH_STATUS = 0
BEGIN
-- Build a SQL string
SET @sql = 'DBCC CHECKDB('+ @dbName +') WITH TABLERESULTS, ALL_ERRORMSGS '
IF @PHYSICAL_ONLY = 1
SET @sql = @sql + ', PHYSICAL_ONLY '
BEGIN TRY
IF @version > 8 AND @version < 11
BEGIN
-- SQL2005/2008 use this column list
INSERT INTO ##DBCC_OUTPUT (
Error,
[Level],
State,
MessageText,
RepairLevel,
Status,
DbId,
ObjectId,
IndexId,
PartitionId,
AllocUnitId,
[File],
Page,
Slot,
RefFile,
RefPage,
RefSlot,
Allocation
)
EXEC(@sql)
END
IF @version >= 11
BEGIN
-- SQL2012 uses all columns
INSERT INTO ##DBCC_OUTPUT (
Error,
[Level],
State,
MessageText,
RepairLevel,
Status,
DbId,
DbFragId,
ObjectId,
IndexId,
PartitionId,
AllocUnitId,
RidDbId,
RidPruId,
[File],
Page,
Slot,
RefDbId,
RefPruId,
RefFile,
RefPage,
RefSlot,
Allocation
)
EXEC(@sql)
END
END TRY
BEGIN CATCH
SELECT @ErrorMessage = 'Unable to run DBCC on database ' + @dbName + ': ' + ERROR_MESSAGE()
INSERT INTO ##DBCC_OUTPUT (Error, MessageText)
SELECT Error = 8989,
MessageText = @ErrorMessage
END CATCH
FETCH NEXT FROM c_databases INTO @dbName
END
CLOSE c_databases
DEALLOCATE c_databases
IF NOT EXISTS (
SELECT 1 FROM ##DBCC_OUTPUT
)
BEGIN
RAISERROR('No database matches the name specified.',10,1)
END
IF @log_to_table = 1
BEGIN
INSERT INTO maint.DBCC_CHECKDB_HISTORY (
Error,
[Level],
State,
MessageText,
RepairLevel,
Status,
DbId,
DbFragId,
DatabaseName,
ObjectId,
IndexId,
PartitionId,
AllocUnitId,
RidDbId,
RidPruId,
[File],
Page,
Slot,
RefDbId,
RefPruId,
RefFile,
RefPage,
RefSlot,
Allocation,
Outcome,
RunDate
)
SELECT
Error,
[Level],
State,
MessageText,
RepairLevel,
Status,
DbId,
DbFragId,
DatabaseName = ISNULL(DB_NAME(DbId),'resourcedb'),
ObjectId,
IndexId,
PartitionId,
AllocUnitId,
RidDbId,
RidPruId,
[File],
Page,
Slot,
RefDbId,
RefPruId,
RefFile,
RefPage,
RefSlot,
Allocation,
Outcome,
RunDate = GETDATE()
FROM ##DBCC_OUTPUT
WHERE Error = 8989
OR @allMessages = 1
OR DbId IN (
SELECT DbId
FROM ##DBCC_OUTPUT
WHERE Error = 8989
AND Outcome = 1
)
END
-- Build the final SQL statement
SET @sql =
'SELECT ISNULL(DB_NAME(DbId),''resourcedb'') AS DatabaseName, ' +
CASE @allMessages
WHEN 1 THEN '*'
ELSE 'MessageText, Outcome'
END + '
FROM ##DBCC_OUTPUT
WHERE 1 = 1 ' +
CASE @allMessages WHEN 1 THEN '' ELSE 'AND Error = 8989' END
IF @dbmail_recipient IS NULL
BEGIN
-- Query DBCC output directly
EXEC(@sql)
END
ELSE
BEGIN
-- Pipe DBCC output to a variable
SET @sql = '
SELECT @body = (
SELECT ISNULL(MessageText,'''') + char(10) AS [text()]
FROM ( ' + @sql + ' AND Error = 8989 ) AS src
WHERE Outcome = 1
ORDER BY 1 DESC
FOR XML PATH('''')
)'
EXEC sp_executesql @sql, N'@body nvarchar(max) OUTPUT', @body OUTPUT
-- Send CHECKDB report
IF @body IS NOT NULL
BEGIN
EXEC msdb.dbo.sp_send_dbmail
@profile_name = @dbmail_profile,
@recipients = @dbmail_recipient,
@subject = 'Consistency error found!',
@body = @body,
@importance = 'High',
@query = '
SET NOCOUNT ON;
SELECT TOP(5000) ISNULL(DB_NAME(DbId),''resourcedb'') + '' -'' AS DatabaseName, MessageText
FROM ##DBCC_OUTPUT WITH (NOLOCK)
WHERE DbId IN (
SELECT DbId
FROM ##DBCC_OUTPUT WITH (NOLOCK)
WHERE Error = 8989
AND Outcome = 1
)
ORDER BY RowId ASC ',
@attach_query_result_as_file = 1,
@query_result_no_padding = 1,
@query_result_header = 0,
@exclude_query_output = 1,
@query_attachment_filename = 'DBCC_CHECKDB_Errors.log'
END
END
IF @localTran = 1 AND XACT_STATE() = 1
COMMIT TRAN LocalTran
IF OBJECT_ID('tempdb..##DBCC_OUTPUT') IS NOT NULL
DROP TABLE ##DBCC_OUTPUT
END TRY
BEGIN CATCH
SELECT @Message = ERROR_MESSAGE(),
@Severity = ERROR_SEVERITY(),
@State = ERROR_STATE()
IF @localTran = 1 AND XACT_STATE() <> 0
ROLLBACK TRAN
RAISERROR ( @Message, @Severity, @State)
END CATCH
END
view raw dba_RunCheckDB.sql hosted with ❤ by GitHub

Once the stored procedure is ready, you can run it against the desired databases:

EXEC [maint].[dba_runCHECKDB]
	@dbName        = 'model',
	@PHYSICAL_ONLY = 0,
	@allmessages   = 0

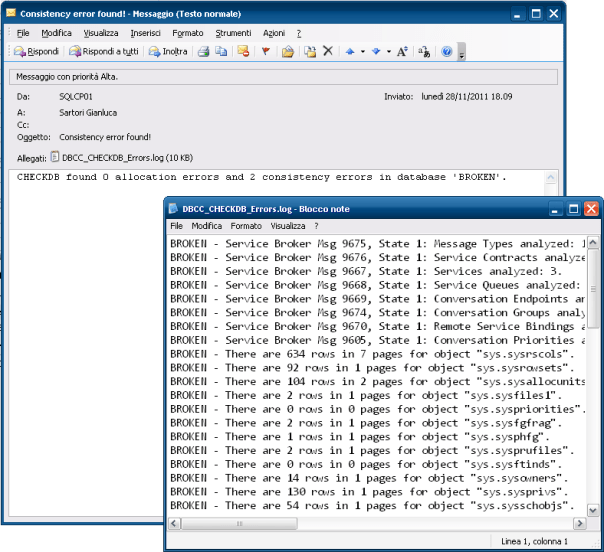

Setting up an e-mail alert

In order to receive an e-mail alert, you can use a SQL Agent job and schedule this script to run every night, or whenever you find appropriate.

EXEC [maint].[dba_runCHECKDB]
    @dbName           = NULL,
    @PHYSICAL_ONLY    = 0,
    @allmessages      = 0,
    @dbmail_profile   = 'DBA_profile',
    @dbmail_recipient = 'dba@mycompany.com'

The e-mail message generated by the stored procedure contains the summary outcome and a detailed log, attached as a text file:

Logging to a table

If needed, you can save the output of this procedure to a history table that logs the outcome of DBCC CHECKDB in time:

-- Run the stored procedure with @log_to_table = 1
EXEC TOOLS.maint.dba_runCHECKDB
    @dbName        = NULL,
    @PHYSICAL_ONLY = 0,
    @allMessages   = 0,
    @log_to_table  = 1

-- Query the latest results
SELECT *
FROM (
    SELECT *, RN = ROW_NUMBER()  OVER (PARTITION BY DBId ORDER BY RunDate DESC)
    FROM DBCC_CHECKDB_HISTORY
    WHERE Outcome IS NOT NULL
) AS dbcc_history
WHERE RN = 1

When invoked with the @log_to_table parameter for the first time, the procedure creates a log table that will be used to store the results. Subsequent executions will append to the table.

No excuses!

The web is full of blogs, articles and forums on how to automate DBCC CHECKDB. If your data has any value to you, CHECKDB must be part of your maintenance strategy.

Run! Check the last time you performed a successful CHECKDB on your databases NOW! Was it last year? You may be in big trouble.

Discovering resultset definition of DBCC commands


Lots of blog posts and discussion threads suggest piping the output of DBCC commands to a table for further processing. That’s a great idea, but, unfortunately, an irritatingly high number of those posts contains an inaccurate table definition for the command output.

The reason behind this widespread inaccuracy is twofold.

On one hand the output of many DBCC commands changed over time and versions of SQL Server, and a table that was the perfect fit for the command in SQL Server 2000 is not  perfect any more. In this case, the blog/article/thread is simply old, but many people will keep referring to that source assuming that things did not change.

On the other hand, the output is not always documented in BOL, and people often have to guess the table definition based on the data returned by the command. I’ve been guilty of this myself and I’ve been corrected many times, until I decided that I needed a better way to discover the output definition.

You are a database professional and you don’t like to guess, because guessing is never as good as knowing it for sure.

In order to stop guessing, you will have to create a linked server named “loopback” that points back to the same instance where you are running the DBCC command.

I am sure you are asking yourself why you need such a strange thing as a loopback linked server. The idea behind is that you need a way to query the command as if it was a table or a view, so that it can be used as a valid source for a SELECT…INTO statement. The perfect tool for this kind of task is the OPENQUERY command, which allows sending pass-through queries, that don’t necessarily need to be SELECT statements. OPENQUERY requires a linked server, which can be any OLEDB data source, including a remote server or the same SQL Server instance where the linked server lies.

OK, let’s create it:

DECLARE @srv nvarchar(4000);
SET @srv = @@SERVERNAME; -- gather this server name

-- Create the linked server
EXEC master.dbo.sp_addlinkedserver
@server     = N'LOOPBACK',
@srvproduct = N'SQLServ', -- it’s not a typo: it can’t be “SQLServer”
@provider   = N'SQLNCLI', -- change to SQLOLEDB for SQLServer 2000
@datasrc    = @srv;


-- Set the authentication to "current security context"
EXEC master.dbo.sp_addlinkedsrvlogin
@rmtsrvname  = N'LOOPBACK',
@useself     = N'True',
@locallogin  = NULL,
@rmtuser     = NULL,
@rmtpassword = NULL;

In order to capture the output of DBCC commands, you have to wrap them inside a stored procedure, otherwise SQL Server could complain about missing column information. I don’t know the exact technical reason behind this error (I suppose it has to do with the way metadata is propagated), but this limitation can be overcome wrapping the command into a stored procedure and using “SET FMTONLY OFF” in the pass-through query.

This is also a nice way to overcome the single INSERT…EXEC limit (and implement many more interesting tricks that I hope to cover in future posts).

For instance, to capture the table definition of DBCC LOGINFO(), you will have to create a stored procedure similar to this:

USE tempdb;
GO

CREATE PROCEDURE loginfo
AS
BEGIN
    SET NOCOUNT ON;

    DBCC LOGINFO();

END
GO

With the stored procedure and the linked server in place, you can set up the call using OPENQUERY:

SELECT *
INTO tempdb.dbo.loginfo_output
FROM OPENQUERY(LOOPBACK, 'SET FMTONLY OFF; EXEC tempdb.dbo.loginfo');

DROP PROCEDURE loginfo;
GO

Running this script will create a table named “loginfo_output” in the tempdb database: you can find it in your object explorer and script it out to a new query editor window.

Repeating these steps on instances running different versions on SQL Server reveals that the table definition changed in SQL2005 and then remained the same in 2008 and 2008R2.

-- SQL Server 2000
CREATE TABLE [dbo].[loginfo_output](
    [FileId]      [int] NULL,
    [FileSize]    [numeric](20, 0) NULL,
    [StartOffset] [numeric](20, 0) NULL,
    [FSeqNo]      [int] NULL,
    [Status]      [int] NULL,
    [Parity]      [tinyint] NULL,
    [CreateLSN]   [numeric](25, 0) NULL
)


-- SQL Server 2005, 2008 and 2008R2
CREATE TABLE [dbo].[loginfo_output](
    [FileId]      [int] NULL,
    [FileSize]    [bigint] NULL,
    [StartOffset] [bigint] NULL,
    [FSeqNo]      [int] NULL,
    [Status]      [int] NULL,
    [Parity]      [tinyint] NULL,
    [CreateLSN]   [numeric](25, 0) NULL
)

Now that you know how the output looks like, you can happily pipe the results of DBCC LOGINFO to an appropriate table:

-- Declare variable for dynamic sql
DECLARE @sql nvarchar(max)

-- Drop the table if already exists
IF OBJECT_ID('tempdb..loginfo_output') IS NOT NULL
    DROP TABLE tempdb..loginfo_output

-- Check SQL Server version
IF CAST(REPLACE(LEFT(CAST(SERVERPROPERTY('ProductVersion') AS nvarchar(128)),2),'.','') AS int) > 8
BEGIN
    -- SQL Server 2005+
    SET @sql = '
        CREATE TABLE tempdb..loginfo_output(
            [FileId]      [int] NULL,
            [FileSize]    [bigint] NULL,
            [StartOffset] [bigint] NULL,
            [FSeqNo]      [int] NULL,
            [Status]      [int] NULL,
            [Parity]      [tinyint] NULL,
            [CreateLSN]   [numeric](25, 0) NULL
        )
        '
END
ELSE
BEGIN
    -- SQL Server 2000
    SET @sql = '
        CREATE TABLE tempdb..loginfo_output(
            [FileId]      [int] NULL,
            [FileSize]    [numeric](20, 0) NULL,
            [StartOffset] [numeric](20, 0) NULL,
            [FSeqNo]      [int] NULL,
            [Status]      [int] NULL,
            [Parity]      [tinyint] NULL,
            [CreateLSN]   [numeric](25, 0) NULL
        )
        '
END

-- Create the output table
EXEC(@sql)

-- Execute DBCC command and
-- pipe results to the output table
INSERT tempdb..loginfo_output
EXEC('DBCC LOGINFO()')


-- Display results
SELECT *
FROM tempdb..loginfo_output

You could ask with good reason why you should use an output table when you could query the wrapper stored procedure directly with OPENQUERY. Based on observation, the trick does not always work and SQL Server can randomly complain about missing column information.

Msg 7357, Level 16, State 2, Line 2
Cannot process the object "loginfo". The OLE DB provider "SQLNCLI10" for linked server "LOOPBACK" indicates that either the object has no columns or the current user does not have permissions on that object.

Again, I don’t have an in-depth technical answer: I can only report what I observed. It’s not a big deal indeed, because the output definition changes very slowly (typically between SQL Server versions) and you probably would review your code anyway when upgrading to a newer version. I guess you can live with a hardcoded table definition when the price to pay for having it dynamic is a random failure.

This post showed you how to capture the output of DBCC LOGINFO, but the same technique can be used for all DBCC commands that allow specifying WITH TABLERESULTS, extended stored procedures, remote stored procedures and all those programmable objects than cannot be inspected easily.

Now that you have the right tool in your hands, do yourself a favour: stop guessing!
